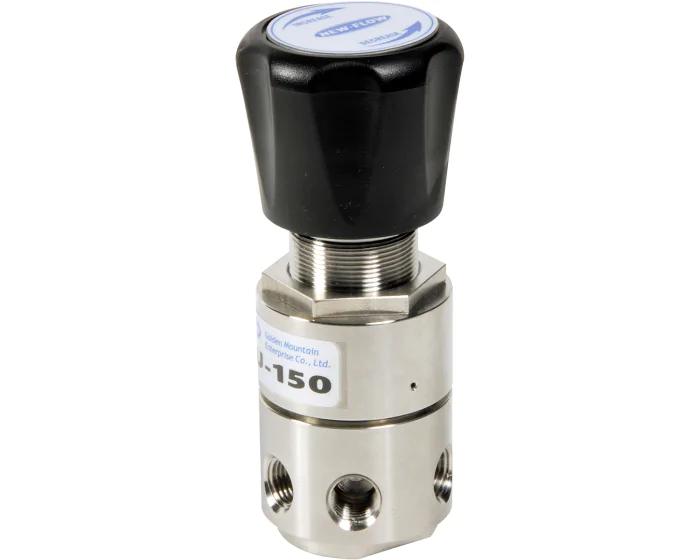

The pressure reducing valve type PRU 150 with stainless steel piston is designed for the outlet pressure function of gases and liquids up to 400 bar.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX compatible | No |
| DN | DN8 - 1/4'' |
| Kv (m³/h) | 0.05 |
| Body material | Stainless steel 316 (1.4401) |
| Downstream pressure range (bar) | 0 / 170 |
| PS (bar) | 240 |
| Connections | NPT FF |
| Seats | PEEK |
| TS max (°C) | 75 |
| TS min (°C) | -25 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| In categories | Pressure reducing valves |
